Thermal cyclers UNO96
Thermal cyclers

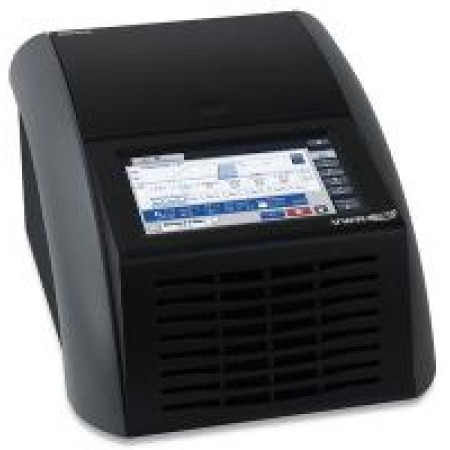

Model UNO 96
The VWR® thermal cycler family combines high quality engineering with a comprehensive range of block formats. The UNO cycler is designed around a powerful yet easy to use software interface and uses the same platform for both 96-well and 384-well formats. The Doppio, with two independent high speed 48-well blocks in one system, offers the optimal solution for maximum flexibility within minimal footprint. The Ristretto is a compact personal cycler with the highest flexibility, having a universal block that can be loaded with up to either 32×0,2 ml tubes or 16×0,5 ml tubes with flat caps. Because of the special design of the heated-lid the height adjusts automatically to the different tube size.
- Outstanding performance: Thermal plate with impressive thermal characteristics; powerful Peltier elements with Long Life Technology; heat sink with cooling fans with magnetic bearing enabling rapid temperature change control of up to 5 °C/s (3 °C/s for Ristretto)
- Reliable reproducible results: 8, 2×8 or16 Peltier elements control the temperature row by row, enabling an outstanding block homogeneity of ± 0,2 °C and the choice of absolute linear gradients and independent lane control
- Simple to use: Sharp, clear TFT display and intuitive 'press screen' commands
- Data control: Up to 4× USB (1× USB Ristretto), 1× Ethernet (MS Windows®, Linux), remote control and monitoring of instruments via PC software, MP3 signal tones, user calls via e-mail and master/slave control
All systems include simple to use PC software for remote control and monitoring of instruments, plus creating PCR protocols on the PC.
- FlexGradient technology (option for UNO and Doppio only): With the temperature of the 8 rows each individually controlled, select between a perfectly linear temperature gradient (ideal for PCR optimisation), or independent lane control (ideal for the use of different primer pairs in the same run)
- System tools at the touch of a button: Graphical or tabular programming, 'Global Program Ramp', 'Gradient Control', 'Tube Control', Emulation mode, Online help, 'Quickstart' function and 'Power Fail Denaturation' for auto-restart after power failure
- High specification remote control: State of the art technology, with VWR ‘PCR Cycler Master Software’; receive notifications via email or use the system MP3 player
- Emulation mode (UNO and Doppio only): For easy transfer of PCR protocols
INFORMATION:
| Modello | UNO96 | |||||
| Block accuracy (°C) | ±0,1 | |||||
| Block homogeneity (°C) | ±0,2 at 72 °C | |||||
| Programs | Unlimited number of programs via network PC or USB memory sticks: internal memory for 500,000 typical PCR protocols | |||||
| Temperature range (°C) | +4...105 | |||||
| Range di temperatura del coperchio (°C) | +40...120 °C | |||||
| Display | Touch sensitive TFT display (800×480 px, 16:9, 65536 colours) | |||||
| Range di temperatura del gradiente (°C) | +35...105 | |||||
| Interfaces | 4× USB, 1× Ethernet (MS Windows®, Linux) | |||||
