Filters for Macherey-nagel syringe type Chromafil MV (Pack of 100 pieces)

FILTERS FOR SYRINGE MACHEREY-NAGEL

TYPE CHROMAFIL MV

CHROMAFIL syringe filters, cellulose mixed esters (MV).

Facilities for CHROMAFIL syringe filters are used for filtration of the material in suspension in liquid samples

Advantages

- Housing PP

- Better stability to solvents compared to acrylate and polystyrene filters

- Shells ultrasonically sealed, not glued

- No plug-in component of the glue

-Filtration Possible in both directions, the liquid can not bypass the membranes Luer lock on the input side

- Secure connection on the high pressure side

- Output Standard LuerLuer for filters to be 3 mm and 25 mm, MiniSpike luer with low dead volume and small outer diameter for 15mm filters

- The flow of liquid is equally distributed over the entire surface of the membrane: this allows a better use of the total area; the filters do not clog up quickly; it has high flow efficiency

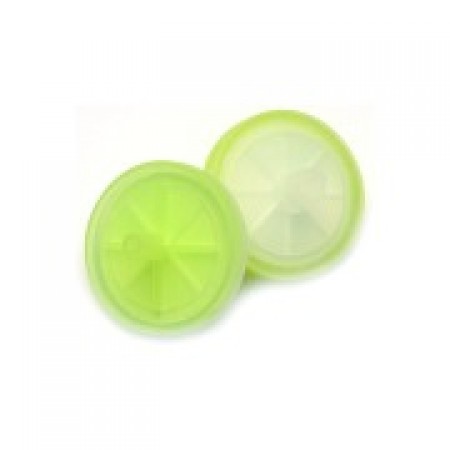

- Color coding: The filters with 0.2μm pores have a yellow upper housing, in those with 0.45μm porosity is rather colorless; the different types of membranes differ due to different color

- Low dead volume ~ 80μl for 25mm, 12μl for 15mm, 5uL to 3 mm.

Technical data:

The membrane housing is polypropylene (PP).

This material is very resistant towards most solvents and has a low level of extractables. So it can be used with almost all solvents, acids and bases.

The especially thick rim is ideal for use with laboratory robots (eg Benchmate ™).

The input and the output of the filter can be connected, via a special adapter, to the columns CHROMABOND® for the selective preparation of the sample.

All filters can be autoclaved at 121 ° C and 1.1 bar for 30 minutes.

Membrane diameter 25 mm

100 pieces pack

Available in different porosities:

- Porosity 0.20 µm color: yellow above, yellow base

- Porosity 0.45 µm color: above colorless, yellow base
