Analizzatore di fumi di combustione CHEMIST 500 X

ANALYZER OF SMOKE COMBUSTION MODEL CHEMIST 500 X

basic modular analyzer that allows to exploit to the end expandability up to 4 gas measuring cells of the array 500. The Chemist Chemist 500 X has only the O2 cell.

3 The gas measuring cells to be added to that of 'O2 can be chosen between 14 different models, which allow to measure with fields, different accuracies and resolutions of up to 6 gases: CO (carbon monoxide), NO (nitrogen monoxide) , NO2 (nitrogen dioxide), SO2 (sulfur dioxide), CxHy (unburnt hydrocarbons), CO2 (carbon dioxide). Furthermore, a high sensitivity to the presence of cell CNG and LPG, which allows using the probe Flue gas as gas leak detector is provided.

This enormous versatility allows to generate 352 different analyzers, resulting from the combinations of the cells, satisfying a large number of needs in many areas.

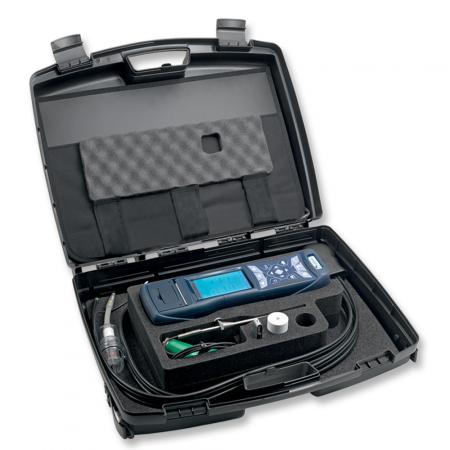

KIT CHEMIST 500 X:

The analyzer is equipped with the single cell O2 (Oxygen) AACSE11 on the base S1, designed for installation of three cells on the whiskers S2, S3, S4. Equipped with integrated IR printer on paper unalterable, electro smoke shut-off valve for automatic auto-zero, the second dilution pump cell protection CO, Bluetooth communications (Class 1) for distances up to 100 meters, the internal pressure sensor with very high accuracy and resolution for draft measures order according UNI10845; 12 Fuels in memory can perform leak test the gas line with UNI 7129/11137, 10 languages in memory

- Case made of ABS;

- Sampling Probe with probe 300 mm, tube length 2 meters;

- Condensate trap + dust filter + hose fitting;

- 90-264V, output USB type A 5V = 2A;

- TcK probe for outside air temperature;

- Differential pressure measuring kit;

- USB adapter cable A / B USB for PC connection;

- USB stick with software, manual and video;

- Brief instruction booklet;

- Certificate of guarantee 2 years;

- Certificate of calibration.

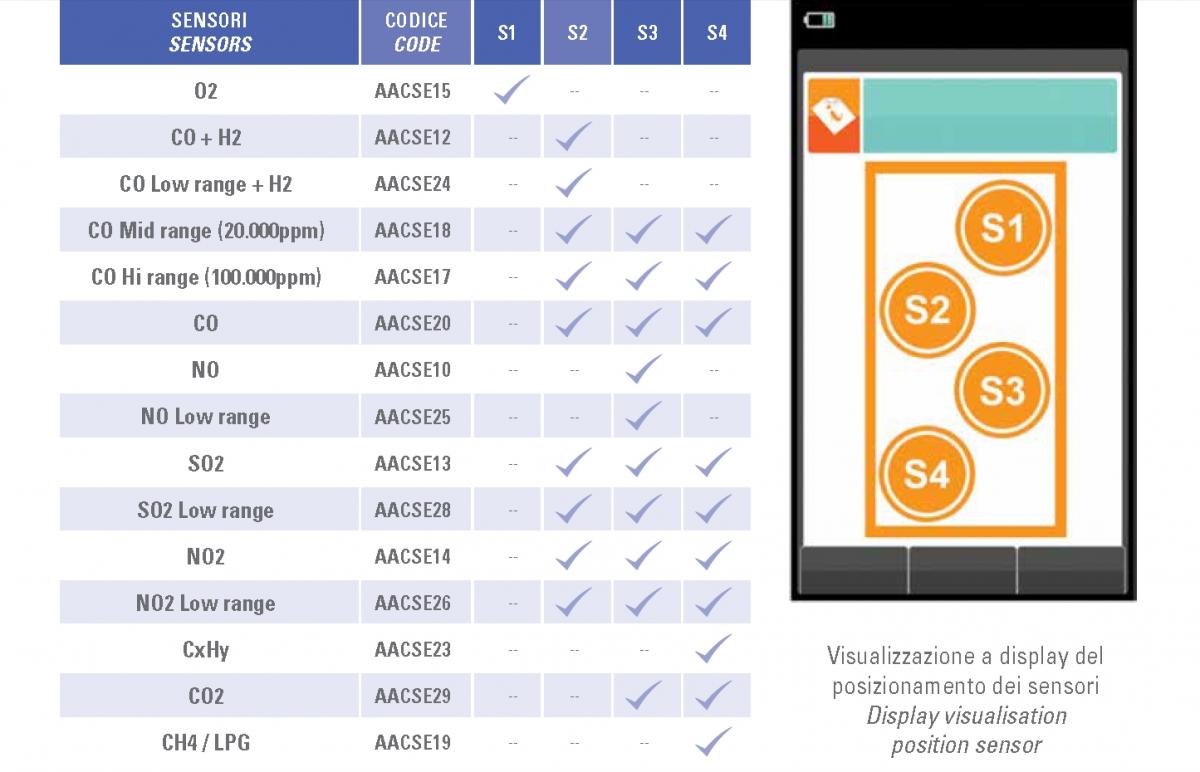

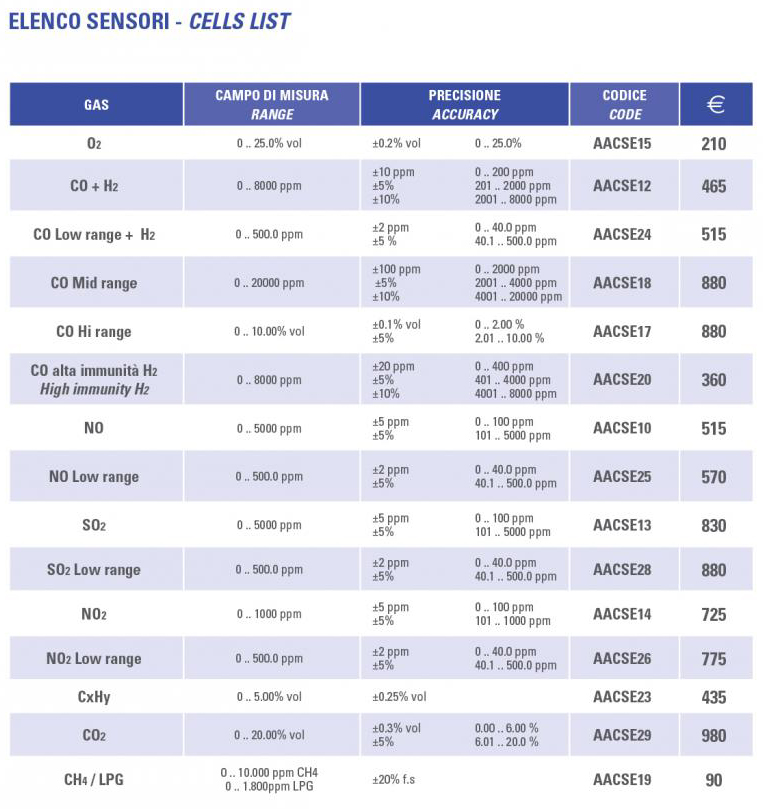

SENSORS AVAILABLE:

Prime O2 sensor (AWACS code E15) located in the cell S1 is the only sensor included in the price.
The other 14 sensors have a different price and not included in the Base Kit CHEMIST 500 X

TECHNICAL FEATURES:

• According to EN 50379-1, EN 50379-2 and UNI 10389-1
• Equipped with one cell O2 (oxygen) on the S1 base, designed for installation of three cells on the whiskers S2, S3, S4
• pre-calibrated gas sensors and interchangeable
• environment and external flue gas temperature measurement
• Draught measurement and differential pressure
• Calculation of the boiler efficiency
• Automatic condensing boiler efficiency calculation Recognition (> 100% on P.C.I.) according to UNI 10389-1
• CO2 calculation, loss of the fireplace, excess air
• ambient CO measurement
• Leak testing of the gas line according to UNI 7129 and UNI 11137
• the high precision draw measurement (± 0.5 Pa) according to UNI 10845
• 3 analysis in sequence with automatic calculation of mean and printout of results
• Thermal printer with paper loaded open / close sensor and paper end
• memory for 900 complete analyzes
• Large graphic color TFT display (54x 96mm) backlit, with zoom function
• Rechargeable Li-Ion Batteries
• battery charger plug with USB connector type A 5V 2A
• Charging time: 6 hours 90%
• Tool life: 12 hours of continuous operation (without printing)
• Print autonomy with fully charged batteries: 60/70 Analysis reports
• Second dilution pump cell protection for CO and measurement up to 100,000 ppm of CO
• Automatic Autozero with gas probe inserted in the chimney
• USB type B port for PC connection and battery charger
• Bluetooth Communication
• Self-diagnosis function check and the sensor status
• Flexible sampling fumes probe 300mm
• Group filtering and anti external condensation
• 12 pre-programmed fuels, including pellets, wood and biogas
• Possibility to get to 32 fuels
• 10 pre-programmed languages
• protective shell EVA
• USB stick with video demonstration and connection with PC software
• User manual and Certificate of Calibration
• Size A323 x L100 x P68 mm, weight 950 g.
