AP BUCK ELITE

AP BUCK ELITE

For this type of sampler are present two different models:
- AP BUCK ELITE 1
- AP BUCK ELITE 5

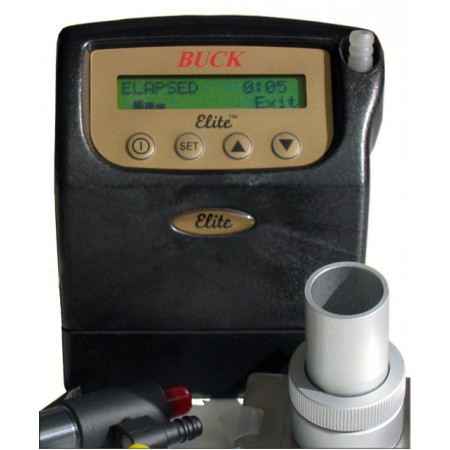

The samplers A.P. Buck ELITE series are compact and handy tools.

Using the various accessories supplied, the Elite 5 model can be used to control exposure of workers is to dust and fibers that gas and vapor while the Elite model 1 is only recommended for the gas sampling and vapors.

Keyboard you can easily access the RUN functions (to start sampling) and MENU (to reset and change the sampling parameters).

The data stored by sampler can be downloaded to a PC (operating on Windows XP) via RS232 port and a special cable (optional).

The flow rate is kept constant (at a given pressure and temperature) due to a differential pressure sensor and to an exclusive electronic card.

By setting to a special password, you can lock the keys to prevent accidental shutdowns.

Warning!

sampler Elite 1: to obtain flow rates between 5 and 99 cc / min is necessary to use the portafiala with low flow adjustment
Elite sampler 5: to obtain flow rates between 5 and 799 cc / min is necessary to use the portafiala with low flow adjustment
The samplers are in accordance with EC Directive 89/336 / EEC and the UNI EN 1232/1999.


Fields of application:

workplaces
emissions
TECHNICAL FEATURES

Elite 1:

Backpressure (inches H2O) Flow rate 100cc / min flow rate 200 cc / min flow rate 300 cc / min flow rate 400 cc / min flow rate 500 cc / min flow rate 600 cc / min
3 "26 hours 22 hours 21 hours 17 hours 15 hours 11 hours
5 "25 hours 21 hours 20 hours 16 hours 12 hours 10 hours
10 "23 hours 20 hours 18 hours 15 hours 11 hours 9 hours
15 "19 hours 16 hours 14 hours 10 hours
20 "18 hours 15 hours 13 hours 9 hours
30 "17 hours 13 hours 12 hours
40 "12 hours
5-99 cc / min with flow reducer: 8 hours

Elite 5:

Backpressure (inches H2O) Flow 1000 cc / min flow 2000cc / min flow 3000cc / min flow 4000cc / min flow 5000cc / min
5 "27 hours 23 hours 17 hours 15 hours 11 hours
10 "21 hours 18 hours 14 hours 11 hours 8 hours
15 "17 hours 16 hours 11 hours 9 hours 6 hours
20 "14 hours 13 hours 9 hours 8 hours
30 "10 hours 9 hours 7 hours 5 hours
40 "7 hours 5 hours
50 "5 hours
60 "3 hours
5-799 cc / min with flow reducer: 8 hours

Size: 114 x 102 x 50 mm (h x w x d)

weight: 539 g

operating limits: 0 to 40 ° C

The kit consists of:

tool
charger
silicone tube (1 m)
