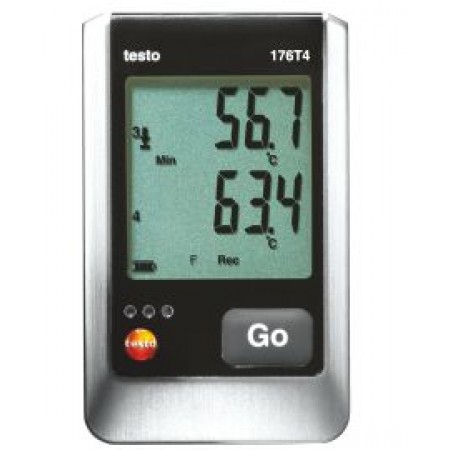

Datalogger Testo model 176-T4

DATALOGGER TESTO

MODEL 176-T4

The data logger testo 176 T4 detects up to 4 dioverse temperatures temperatures Thanks to the data memory that can record up to 2 million measurement data, the compatibility with various types of thermocouple sensors and wide measurement range, the data logger used in various professional fields.

This instrument requires probes (on request)

Advantages:

Large memory of the measured data of up to 2 million measured values, battery life up to 8 years
It detects and records simultaneously up to four temperature values
exceptionally wide measuring range from -200 ° C to 1000 ° C
For the analysis of data to PC three selectable software variants are available, among them, the Basic software is a free download
The process also complies with the temperature limits set? With the data logger for text temperature 176 T4 you find out. Measuring simultaneously 4 temperature values, record them reliably and stores up to 2 million values. In this way, the intervals between one reading and the next can also lengthen.

To commission the logger service is necessary to connect at least one temperature sensor. They are available as optional accessories various probes with thermocouple sensors - those of type K, T or J to those for immersion / penetration measurements, for measurements in air or superficial measures.

technical and practical advantages Features

The display can be viewed at any time the current measured values, the set limit values, the violation of the limit values, the values min. and max. and remaining battery life.
For a quick overview of measured values it is not strictly necessary to transfer data from the instrument to a PC.
Thanks to the large data memory and battery life of up to eight years, the data can be downloaded less frequently.

The protection class IP 65 enables the problem-free use of text data logger 176 T4 in dirty and dusty environments. The standard batteries (AA) are replaceable at any time by the user.

Possible areas of application

temperature control in cold storage or cryogenic conditions
Measurement of flow and return temperatures on the distribution units of a floor heating system, to ensure their functionality
the process temperature control
Control of the flow and return temperatures on heating
Planning and analysis of the data logger

To program and read the data of your data logger as well as for the analysis of the measured data on the PC you can choose from three different versions of software:

ComSoft Basic software - a free download - allows fast programming of the data logger and easy analysis of data
Software ComSoft Professional - in addition ordered as an option - with endless opportunities to perform detailed analysis of temperature
Software ComSoft CFR 21 Part 11 - additionally ordered as an option - great accessory for special needs that must be met in the pharmaceutical industry in accordance with the standard of FDA (Food and Drug Administration) 21 CFR Part 11

For logger programming it is necessary to have a USB cable, which is not included in the delivery. The transmission of measurement data to the PC can be via USB cable or via an SD card. Both can be ordered as optional accessories.

Shipping Content

Temperature data logger text 176 T4 with connectors for external sensors (T type thermocouple, K and J), including wall holder, lock, batteries and calibration protocol.
