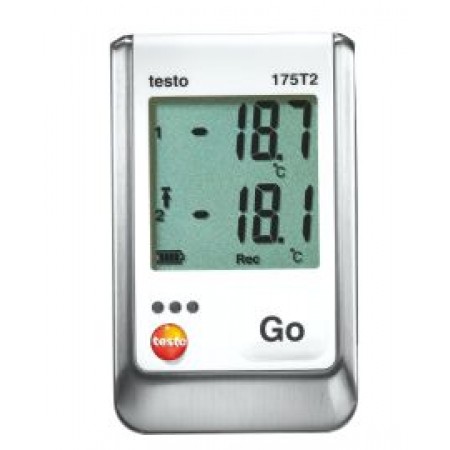

Datalogger Testo model 175-T2

DATALOGGER TESTO

MODEL 175-T2

The data logger 175 T2 text temperature is the ideal solution when it comes to controlling a single instrument the air temperature and simultaneously, using a second channel, detect other temperature values (eg. The internal temperature). Especially in the field of storage of food products you use to make a parallel temperature monitoring, through the analysis of environmental conditions and of the same goods.

Advantages:

Ideal for long-term measures: memory for 1 million values, battery life up to 3 years
wall bracket supplied
Complies with HACCP standards, certified according to EN 12830, protection class IP 65
Data analysis: three different versions of available software, free version Basic
It has a sensor and a connection for an external temperature probe. These features make it the ideal tool when, in addition to air temperature control, you need to make another temperature control (eg. Sampling the internal temperature).

A function practical way eg. in the field of storage and processing of food, because it allows you to measure ambient conditions or in cold storage while the internal temperature of the goods, for example. with the help of a penetration probe (optional). The tool also allows you to control the temperature in the interior of the packaging. The results of measurements carried out in both channels are stored safely in memory of your datalogger.

Modern measurement technology, high data security

The built-in temperature probe into the data logger is an NTC probe that measures with a high degree of precision (± 0.5 ° C). Thanks to the wide band measurement of the internal temperature probe, comprised between -35 ° C and +55 ° C, the temperature data logger can also be used in the cells and in cold stores.

The accuracy and the measurement end of the NTC probe (optional) connectable, dependent on the type of probe in use. With a suitable temperature sensor, they are eg. possible also measures in the range up to +120 ° C.

The large display of the temperature data logger is possible to read the measured values momentarily detected, the set thresholds, the exceeding of thresholds, the min / max values and the remaining battery capacity. This allows you to constantly monitoring key data without having to continually plug the data logger to the PC. The datalogger does not require frequent reading even with short measurement cycles, thanks to the memory with enough space for 1 million measured values and the autonomy of the batteries that can be up to three years. The standard batteries (AAA) may be replaced at any time by the user.

You too can choose the temperature data logger testo 175 T2 and point to high data security: the stored data is not lost even if the batteries are empty or are replaced.
Programming and analysis of temperature data logger

For programming and reading your datalogger temperature, as well as for the analysis of data to the PC, you need software. The software is available in three different versions:
Software ComSoft Basic - downloadable for free - for fast programming of the data logger and easy analysis of the measured values
Software ComSoft Professional - optionally available - which offers various possibilities for detailed analysis of measurement results
Software ComSoft CFR 21 Part 11 - optionally available - which responds optimally to the special requirements of 21 CFR Part 11 in the pharmaceutical sector
Tested and certified for use in the food industry

Tested according to EN 12830 (inspection by the body of TÜV Süd technical inspection ATP)
Compliant and certified according to HACCP standards
Protection from splashes and water jets that IP 65 class: the so-temperature data logger can remain in place even during the work of cleaning the warehouse or cold store
Shipping Content

Datalogger 175 T2 text temperature with internal temperature sensor (NTC) and external sensor connection (NTC), including wall mounts, lock, batteries and calibration protocol.

Warning: for programming the data logger a USB cable is required (not supplied). The cable can be ordered separately. Even the transfer of data to the PC can be done with the help of USB cable or an SD memory card (optional).
